这个主要是在CSAPP基础上做的,添加了POST,SSL,目录显示等功能。
一、 实现功能:
1.支持GET/POST方法
2.支持SSL安全连接即HTTPS
3.支持CGI
4.基于IP地址和掩码的认证
5.目录显示
6.日志功能
7.错误提示页面
github地址:https://github.com/Skycrab/Linux-C-Web-Server
源代码下载地址:点击打开链接
二、设计原理
首先介绍一些HTTP协议基本知识。
#1.GET/POST
本实现支持GET/POST方法,都是HTTP协议需要支持的标准方法。
GET方法主要是通过URL发送请求和传送数据,而POST方法在请求头空一格之后传送数据,所以POST方法比GET方法安全性高,因为GET方法可以直接看到传送的数据。另外一个区别就是GET方法传输的数据较小,而POST方法很大。所以一般表单,登陆页面等都是通过POST方法。
#2.MIME类型
当服务器获取客户端的请求的文件名,将分析文件的MIME类型,然后告诉浏览器改文件的MIME类型,浏览器通过MIME类型解析传送过来的数据。具体来说,浏览器请求一个主页面,该页面是一个HTML文件,那么服务器将”text/html”类型发给浏览器,浏览器通过HTML解析器识别发送过来的内容并显示。
下面将描述一个具体情景。
客户端使用浏览器通过URL发送请求,服务器获取请求。
如浏览器URL为:127.0.0.1/postAuth.html,
那么服务器获取到的请求为:GET ?/postAuth.html ?HTTP/1.1
意思是需要根目录下postAuth.html文件的内容,通过GET方法,使用HTTP/1.1协议(1.1是HTTP的版本号)。这是服务器将分析文件名,得知postAuth.html是一个HTML文件,所以将”text/html”发送给浏览器,然后读取postAuth.html内容发给浏览器。
实现简单的MIME类型识别代码如下:
主要就是通过文件后缀获取文件类型。
static void get_filetype(const char *filename, char *filetype) { if (strstr(filename, ".html")) strcpy(filetype, "text/html"); else if (strstr(filename, ".gif")) strcpy(filetype, "image/gif"); else if (strstr(filename, ".jpg")) strcpy(filetype, "image/jpeg"); else if (strstr(filename, ".png")) strcpy(filetype, "image/png"); else strcpy(filetype, "text/plain"); }
如果支持HTTPS的话,那么我们就#define HTTPS,这主要通过gcc 的D选项实现的,具体细节可参考man手册。
静态内容显示实现如下:
static void serve_static(int fd, char *filename, int filesize) { int srcfd; char *srcp, filetype[MAXLINE], buf[MAXBUF]; /* Send response headers to client */ get_filetype(filename, filetype); sprintf(buf, "HTTP/1.0 200 OK\r\n"); sprintf(buf, "%sServer: Tiny Web Server\r\n", buf); sprintf(buf, "%sContent-length: %d\r\n", buf, filesize); sprintf(buf, "%sContent-type: %s\r\n\r\n", buf, filetype); /* Send response body to client */ srcfd = Open(filename, O_RDONLY, 0); srcp = Mmap(0, filesize, PROT_READ, MAP_PRIVATE, srcfd, 0); Close(srcfd); #ifdef HTTPS if(ishttps) { SSL_write(ssl, buf, strlen(buf)); SSL_write(ssl, srcp, filesize); } else #endif { Rio_writen(fd, buf, strlen(buf)); Rio_writen(fd, srcp, filesize); } Munmap(srcp, filesize); }
#3.CGI规范
如果只能显示页面那么无疑缺少动态交互能力,于是CGI产生了。CGI是公共网关接口(Common Gateway Interface),是在CGI程序和Web服务器之间传递信息的规则。CGI允许Web服务器执行外部程序,并将它们的输出发送给浏览器。这样就提供了动态交互能力。
那么服务器是如何分开处理静态页面和动态CGI程序的呢?这主要是通过解析URL的方式。我们可以定义CGI程序的目录,如cgi-bin,那么如果URL包含”cgi-bin”字符串则这是动态程序,且将URL的参数给cgiargs。如果是静态页面,parse_uri返回1,反正返回0。所以我们可以通过返回值区别不同的服务类型。
具体解析URL方式如下:
static void serve_static(int fd, char *filename, int filesize) { int srcfd; char *srcp, filetype[MAXLINE], buf[MAXBUF]; /* Send response headers to client */ get_filetype(filename, filetype); sprintf(buf, "HTTP/1.0 200 OK\r\n"); sprintf(buf, "%sServer: Tiny Web Server\r\n", buf); sprintf(buf, "%sContent-length: %d\r\n", buf, filesize); sprintf(buf, "%sContent-type: %s\r\n\r\n", buf, filetype); /* Send response body to client */ srcfd = Open(filename, O_RDONLY, 0); srcp = Mmap(0, filesize, PROT_READ, MAP_PRIVATE, srcfd, 0); Close(srcfd); #ifdef HTTPS if(ishttps) { SSL_write(ssl, buf, strlen(buf)); SSL_write(ssl, srcp, filesize); } else #endif { Rio_writen(fd, buf, strlen(buf)); Rio_writen(fd, srcp, filesize); } Munmap(srcp, filesize); }
GET方式的CGI规范实现原理:
服务器通过URL获取传给CGI程序的参数,设置环境变量QUERY_STRING,并将标准输出重定向到文件描述符,然后通过EXEC函数簇执行外部CGI程序。外部CGI程序获取QUERY_STRING并处理,处理完后输出结果。由于此时标准输出已重定向到文件描述符,即发送给了浏览器。
实现细节如下:由于涉及到HTTPS,所以稍微有点复杂。
static void serve_static(int fd, char *filename, int filesize) { int srcfd; char *srcp, filetype[MAXLINE], buf[MAXBUF]; /* Send response headers to client */ get_filetype(filename, filetype); sprintf(buf, "HTTP/1.0 200 OK\r\n"); sprintf(buf, "%sServer: Tiny Web Server\r\n", buf); sprintf(buf, "%sContent-length: %d\r\n", buf, filesize); sprintf(buf, "%sContent-type: %s\r\n\r\n", buf, filetype); /* Send response body to client */ srcfd = Open(filename, O_RDONLY, 0); srcp = Mmap(0, filesize, PROT_READ, MAP_PRIVATE, srcfd, 0); Close(srcfd); #ifdef HTTPS if(ishttps) { SSL_write(ssl, buf, strlen(buf)); SSL_write(ssl, srcp, filesize); } else #endif { Rio_writen(fd, buf, strlen(buf)); Rio_writen(fd, srcp, filesize); } Munmap(srcp, filesize); }
POST方式的CGI规范实现原理:
由于POST方式不是通过URL传递参数,所以实现方式与GET方式不一样。
POST方式获取浏览器发送过来的参数长度设置为环境变量CONTENT-LENGTH。并将参数重定向到CGI的标准输入,这主要通过pipe管道实现的。CGI程序从标准输入读取CONTENT-LENGTH个字符就获取了浏览器传送的参数,并将处理结果输出到标准输出,同理标准输出已重定向到文件描述符,所以浏览器就能收到处理的响应。
具体实现细节如下:
static void serve_static(int fd, char *filename, int filesize) { int srcfd; char *srcp, filetype[MAXLINE], buf[MAXBUF]; /* Send response headers to client */ get_filetype(filename, filetype); sprintf(buf, "HTTP/1.0 200 OK\r\n"); sprintf(buf, "%sServer: Tiny Web Server\r\n", buf); sprintf(buf, "%sContent-length: %d\r\n", buf, filesize); sprintf(buf, "%sContent-type: %s\r\n\r\n", buf, filetype); /* Send response body to client */ srcfd = Open(filename, O_RDONLY, 0); srcp = Mmap(0, filesize, PROT_READ, MAP_PRIVATE, srcfd, 0); Close(srcfd); #ifdef HTTPS if(ishttps) { SSL_write(ssl, buf, strlen(buf)); SSL_write(ssl, srcp, filesize); } else #endif { Rio_writen(fd, buf, strlen(buf)); Rio_writen(fd, srcp, filesize); } Munmap(srcp, filesize); }
目录显示功能原理:
主要是通过URL获取所需目录,然后获取该目录下所有文件,并发送相应信息,包括文件格式对应图片,文件名,文件大小,最后修改时间等。由于我们发送的文件名是通过超链接的形式,所以我们可以点击文件名继续浏览信息。
具体实现细节如下:
static void serve_static(int fd, char *filename, int filesize) { int srcfd; char *srcp, filetype[MAXLINE], buf[MAXBUF]; /* Send response headers to client */ get_filetype(filename, filetype); sprintf(buf, "HTTP/1.0 200 OK\r\n"); sprintf(buf, "%sServer: Tiny Web Server\r\n", buf); sprintf(buf, "%sContent-length: %d\r\n", buf, filesize); sprintf(buf, "%sContent-type: %s\r\n\r\n", buf, filetype); /* Send response body to client */ srcfd = Open(filename, O_RDONLY, 0); srcp = Mmap(0, filesize, PROT_READ, MAP_PRIVATE, srcfd, 0); Close(srcfd); #ifdef HTTPS if(ishttps) { SSL_write(ssl, buf, strlen(buf)); SSL_write(ssl, srcp, filesize); } else #endif { Rio_writen(fd, buf, strlen(buf)); Rio_writen(fd, srcp, filesize); } Munmap(srcp, filesize); }
HTTPS的实现:
HTTPS主要基于openssl的开源库实现。如果没有安装,那么我们就不#define HTTPS。
HTTPS的功能主要就是提供安全的连接,服务器和浏览器之间传送的数据是通过加密的,加密方式可以自己选定。
开始连接时,服务器需要发送CA,由于我们的CA是自己签发的,所以需要我们自己添加为可信。
访问控制功能:
主要是通过获取客户端IP地址,并转换为整数,与上配置文件中定义的掩码,如果符合配置文件中允许的网段,那么可以访问,否则不可以。
具体实现如下。
static void serve_static(int fd, char *filename, int filesize) { int srcfd; char *srcp, filetype[MAXLINE], buf[MAXBUF]; /* Send response headers to client */ get_filetype(filename, filetype); sprintf(buf, "HTTP/1.0 200 OK\r\n"); sprintf(buf, "%sServer: Tiny Web Server\r\n", buf); sprintf(buf, "%sContent-length: %d\r\n", buf, filesize); sprintf(buf, "%sContent-type: %s\r\n\r\n", buf, filetype); /* Send response body to client */ srcfd = Open(filename, O_RDONLY, 0); srcp = Mmap(0, filesize, PROT_READ, MAP_PRIVATE, srcfd, 0); Close(srcfd); #ifdef HTTPS if(ishttps) { SSL_write(ssl, buf, strlen(buf)); SSL_write(ssl, srcp, filesize); } else #endif { Rio_writen(fd, buf, strlen(buf)); Rio_writen(fd, srcp, filesize); } Munmap(srcp, filesize); }
配置文件的读取:
主要选项信息都定义与配置文件中。
格式举例如下;
#HTTP PORT
PORT = 8888
所以读取配置文件函数具体如下:
static char* getconfig(char* name) { /* pointer meaning: ...port...=...8000... | | | | | *fs | | | *be f->forward b-> back *fe | *bs s->start e-> end *equal */ static char info[64]; int find=0; char tmp[256],fore[64],back[64],tmpcwd[MAXLINE]; char *fs,*fe,*equal,*bs,*be,*start; strcpy(tmpcwd,cwd); strcat(tmpcwd,"/"); FILE *fp=getfp(strcat(tmpcwd,"config.ini")); while(fgets(tmp,255,fp)!=NULL) { start=tmp; equal=strchr(tmp,'='); while(isblank(*start)) ++start; fs=start; if(*fs=='#') continue; while(isalpha(*start)) ++start; fe=start-1; strncpy(fore,fs,fe-fs+1); fore[fe-fs+1]='\0'; if(strcmp(fore,name)!=0) continue; find=1; start=equal+1; while(isblank(*start)) ++start; bs=start; while(!isblank(*start)&&*start!='\n') ++start; be=start-1; strncpy(back,bs,be-bs+1); back[be-bs+1]='\0'; strcpy(info,back); break; } if(find) return info; else return NULL; }
三、 测试
本次测试
使用了两台机器。一台Ubuntu的浏览器作为客户端,一台Redhat作为服务器端,其中Redhat是Ubuntu上基于VirtualBox的一台虚拟机。
IP地址信息如下:Ubuntu的vboxnet0:
<img src="http://jbcdn2.b0.upaiyun.com/2016/11/73d81eee84e5fe07de8e076ee6b5d25a.jpg" alt="" />
RedHateth0:

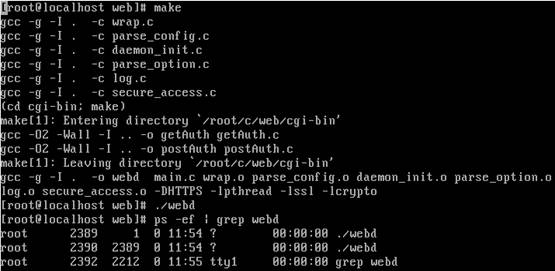

RedHat主机编译项目:
由于我们同事监听了8000和4444,所以有两个进程启动。
HTTP的首页:
目录显示功能:

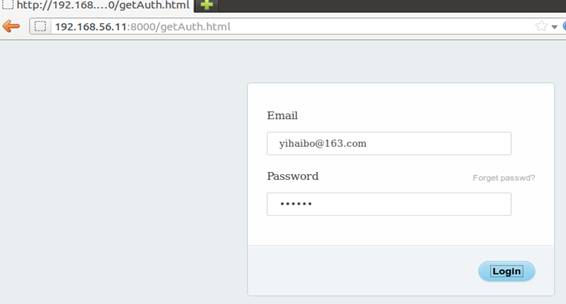

HTTP GET页面:
HTTPGET响应:
从HTTP GET响应中我们观察URL,参数的确是通过URL传送过去的。
其中getAuth.c如下:
#include "wrap.h" #include "parse.h" int main(void) { char *buf, *p; char name[MAXLINE], passwd[MAXLINE],content[MAXLINE]; /* Extract the two arguments */ if ((buf = getenv("QUERY_STRING")) != NULL) { p = strchr(buf, '&'); *p = '\0'; strcpy(name, buf); strcpy(passwd, p+1); } /* Make the response body */ sprintf(content, "Welcome to auth.com:%s and %s\r\n<p>",name,passwd); sprintf(content, "%s\r\n", content); sprintf(content, "%sThanks for visiting!\r\n", content); /* Generate the HTTP response */ printf("Content-length: %d\r\n", strlen(content)); printf("Content-type: text/html\r\n\r\n"); printf("%s", content); fflush(stdout); exit(0); }
HTTPS的首页:由于我们的CA不可信,所以需要我们认可

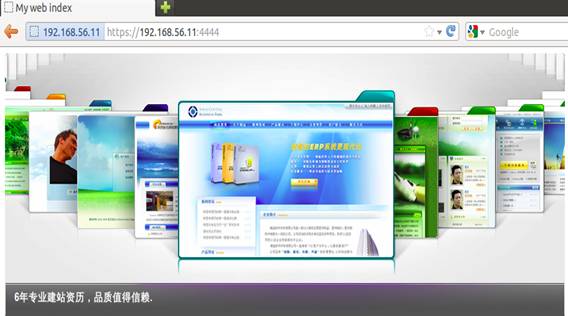

认可后HTTPS首页:
HTTPS POST页面:
HTTPS POST响应:
从上我们可以看出,POST提交的参数的确不是通过URL传送的。
