最近项目中要使用到图表
但是项目在内网中无法直接使用命令安装
然后我在外网中弄个vue的项目(随便什么项目)
先使用npm install echarts --save安装
然后在项目node_modules下会出现这两个文件
解压拿到内网项目中,放到相同位置

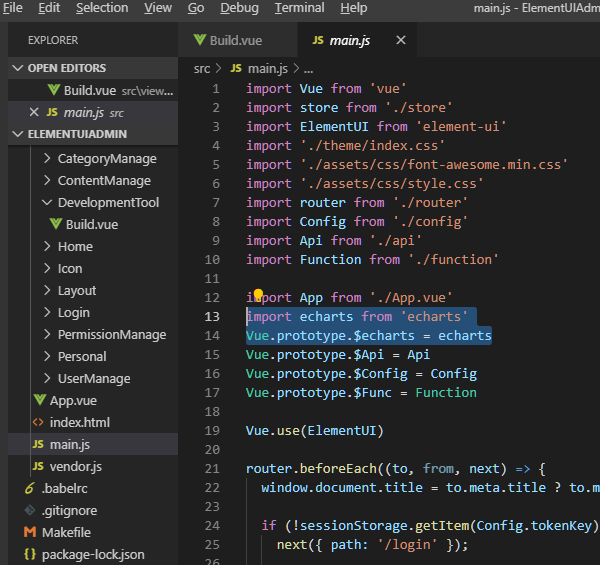

然后在main.js中加2行代码
import echarts from 'echarts'
vue.prototype.$echarts = echarts

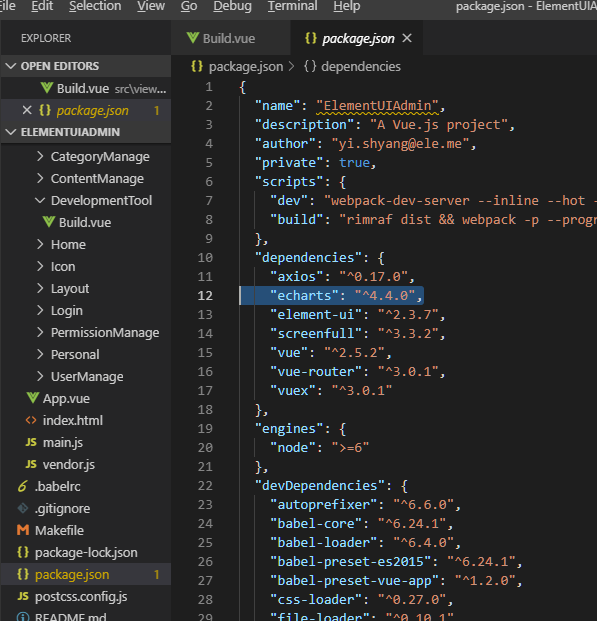

接着在package.json中加 "echarts": "^4.4.0",
接着创建一个.vue文件试试,直接粘贴以下代码即可
<template>
<div id="piereport"
style="width: 400px;height: 300px;"></div>
</template>
<script>
export default {
name: "",
data () {
return {
charts: "",
opinion: ["及格人数", "未及格人数"],
opiniondata: [
{ value: 12, name: "及格人数", itemstyle: "#1ab394" },
{ value: 18, name: "未及格人数", itemstyle: "#79d2c0" }
]
};
}, mounted () {
this.$nexttick(function () {
this.drawpie("piereport");
});
}, methods: {
drawpie (id) {
this.charts = this.$echarts.init(document.getelementbyid(id));
this.charts.setoption({
tooltip: {
trigger: "item",
formatter: "{a}<br/>{b}:{c} ({d}%)"
},
legend: {
bottom: 10,
left: "center",
data: this.opinion
},
series: [
{
name: "状态",
type: "pie",
radius: "65%",
center: ["50%", "50%"],
avoidlabeloverlap: false,
itemstyle: {
emphasis: {
shadowblur: 10,
shadowoffsetx: 0,
shadowcolor: "rgba(0, 0, 0, 0.5)"
},
color: function (params) {
//自定义颜色
var colorlist = ["#1ab394", "#79d2c0"];
return colorlist[params.dataindex];
}
},
data: this.opiniondata
}
]
});
},
}
}
</script>

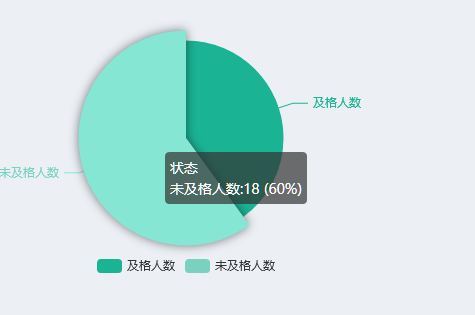

完美!!
