这里主要用的是第三方的东西，就是魔窗中的mlink功能。想了解魔窗的朋友就到官网去看看吧。在这里我说一下我通过魔窗是怎么实现的。
首先我们看一下浏览器上面的代码，这个就是我们从该页面上跳转打开app。
<html>
<head>
<title>浏览器打开app测试</title>
<script src="http://www.51sjk.com/Upload/Articles/1/0/246/246045_20210619000308576.js"></script>
<script src="http://www.51sjk.com/Upload/Articles/1/0/246/246045_20210619000308592.js"></script>
</head>
<body>
<a id="btnopenapp">打开app</a>
<script>
new mlink(
{
mlink: "aa2f",
button: document.queryselector('a#btnopenapp'),
autolaunchapp : false,
autoredirecttodownloadurl: true,
downloadwhenuniversallinkfailed: false,
inapp : true,
params: {
storyboardkey:'detailsactivity',
storyboardid:'productdetail',
name:'twoactivity',
productid:'1454456156'
}
})
</script>
</body>
</html>
mlink: "aa2f",这个aa2f就是我们在魔窗上配置的一个短链接最后面的mlink，比如，我的短链接是：http://a.mlinks.cc/aa2f；
button: document.queryselector('a#btnopenapp'),
autolaunchapp : false,
autoredirecttodownloadurl: true,
downloadwhenuniversallinkfailed: false,
inapp : true,
这些在官网上都有解释，我就不解释了；params就是我们要传递的参数。

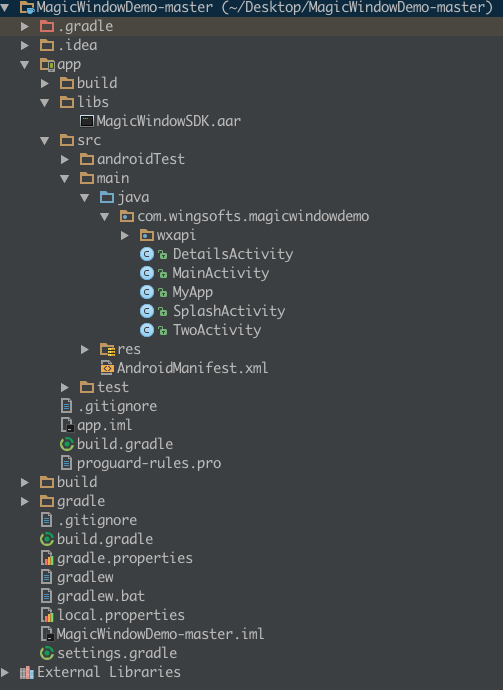

好了，现在到了关键时刻了，就是我们app上面的配置了，先看我的项目目录：
先把魔窗这个包倒进来，然后在gradle上进行配置，我的是这样配置的：
apply plugin: 'com.android.application'
apply plugin: 'me.tatarka.retrolambda'
android {
compilesdkversion 24
buildtoolsversion "24.0.0"
defaultconfig {
applicationid "com.wingsofts.magicwindowdemo"
minsdkversion 15
targetsdkversion 24
versioncode 1
versionname "1.0"
}
buildtypes {
release {
minifyenabled false
proguardfiles getdefaultproguardfile('proguard-android.txt'), 'proguard-rules.pro'
}
}
compileoptions {
targetcompatibility 1.8
sourcecompatibility 1.8
}
}
dependencies {
compile filetree(dir: 'libs', include: ['*.jar'])
testcompile 'junit:junit:4.12'
compile 'com.android.support:appcompat-v7:24.1.1'
compile "io.reactivex:rxandroid:1.2.0"
compile "io.reactivex:rxjava:1.1.7"
compile(name: 'magicwindowsdk', ext: 'aar')
}
repositories {
flatdir {
dirs 'libs'
}
}
然后在看看myapp页面，我的是这样的：
package com.wingsofts.magicwindowdemo;
import android.app.application;
import com.zxinsight.session;
public class myapp extends application {
@override
public void oncreate() {
super.oncreate();
session.setautosession(this);
}
}
这里的session的作用是获取到活动。
mainactivity页面是这样的：
package com.wingsofts.magicwindowdemo;
import android.content.intent;
import android.os.bundle;
import android.support.v7.app.appcompatactivity;
import android.view.view;
public class mainactivity extends appcompatactivity {
@override
protected void oncreate(bundle savedinstancestate) {
super.oncreate(savedinstancestate);
setcontentview(r.layout.activity_main);
}
public void onclick(view v) {
startactivity(new intent(this, detailsactivity.class));
}
}
activity_main:
<?xml version="1.0" encoding="utf-8"?>
<relativelayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingbottom="@dimen/activity_vertical_margin"
android:paddingleft="@dimen/activity_horizontal_margin"
android:paddingright="@dimen/activity_horizontal_margin"
android:paddingtop="@dimen/activity_vertical_margin"
tools:context="com.wingsofts.magicwindowdemo.mainactivity"
>
<button
android:layout_centerinparent="true"
android:onclick="onclick"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="点我去详情页"
/>
</relativelayout>
上面这两个页面就没什么好介绍的了，很平常的两个页面。
detailsactivity页面：
package com.wingsofts.magicwindowdemo;
import android.os.bundle;
import android.support.v7.app.appcompatactivity;
public class detailsactivity extends appcompatactivity {
@override
protected void oncreate(bundle savedinstancestate) {
super.oncreate(savedinstancestate);
setcontentview(r.layout.activity_details);
}
}
activity_details布局：
<?xml version="1.0" encoding="utf-8"?>
<relativelayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingbottom="@dimen/activity_vertical_margin"
android:paddingleft="@dimen/activity_horizontal_margin"
android:paddingright="@dimen/activity_horizontal_margin"
android:paddingtop="@dimen/activity_vertical_margin"
tools:context="com.wingsofts.magicwindowdemo.detailsactivity"
>
<textview
android:text="我是详情页"
android:textsize="30sp"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
/>
</relativelayout>
twoactivity页面:
package com.wingsofts.magicwindowdemo;
import android.support.v7.app.appcompatactivity;
import android.os.bundle;
public class twoactivity extends appcompatactivity {
@override
protected void oncreate(bundle savedinstancestate) {
super.oncreate(savedinstancestate);
setcontentview(r.layout.activity_two);
}
}
对应得布局是activity_two:
<?xml version="1.0" encoding="utf-8"?>
<relativelayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.wingsofts.magicwindowdemo.twoactivity">
<textview
android:layout_width="match_parent"
android:layout_height="match_parent"
android:text="我是第二个页面"
android:textsize="40sp"
/>
</relativelayout>
下面这一个页面很重要，基本上所有的重要代码都集中在这里：
package com.wingsofts.magicwindowdemo;
import android.content.context;
import android.content.intent;
import android.net.uri;
import android.os.bundle;
import android.support.v7.app.appcompatactivity;
import com.zxinsight.mlink;
import com.zxinsight.mwconfiguration;
import com.zxinsight.magicwindowsdk;
import com.zxinsight.mlink.mlinkcallback;
import com.zxinsight.mlink.mlinkintentbuilder;
import java.util.iterator;
import java.util.map;
import java.util.concurrent.timeunit;
import rx.observable;
import rx.android.schedulers.androidschedulers;
public class splashactivity extends appcompatactivity {
private string demoname = "com.wingsofts.magicwindowdemo";
@override
protected void oncreate(bundle savedinstancestate) {
super.oncreate(savedinstancestate);
setcontentview(r.layout.activity_splash);
initsdk();//初始化sdk
registerlinks(this);//注册sdk
initmlink();
}
public void initmlink() {
intent intent = getintent();
uri mlink = intent.getdata();
//如果从浏览器传来 则进行路由操作
if (mlink != null) {
mlink.getinstance(this).router(this, mlink);
finish();
} else {
//否则执行原本操作
go2mainactivity();
}
}
//注册sdk
public void registerlinks(context context) {
mlink.getinstance(context).registerdefault(new mlinkcallback() {
@override
public void execute(map parammap, uri uri, context context) {
//默认的路由 如果没有匹配则转跳到 mainactivity 为你的首页
mlinkintentbuilder.buildintent(parammap, context, mainactivity.class);
}
});
// testkey: mlink 的 key, mlink的唯一标识,用于进行路由操作
mlink.getinstance(context).register("productdetail", new mlinkcallback() {
public void execute(map parammap, uri uri, context context) {
//!!!!!!!!注意 此处有坑,如果你的splashactivity转跳有延迟，那么在此处转跳的延迟必须大于前者转跳时间
observable.timer(1050, timeunit.milliseconds)
.observeon(androidschedulers.mainthread())
.subscribe(avoid -> {
//mlinkintentbuilder.buildintent(parammap, context, class.forname(name));
string name = (string) parammap.get("name");
intent intent = new intent();
intent.setclassname(context, demoname + "." + name);
startactivity(intent);
});
}
});
}
//初始化魔窗sdk
public void initsdk() {
mwconfiguration config = new mwconfiguration(this);
config.setdebugmodel(true)
//带有fragment的页面。具体查看2.2.2
.setpagetrackwithfragment(true)
//设置分享方式，如果之前有集成sharesdk，可在此开启
.setshareplatform(mwconfiguration.original);
magicwindowsdk.initsdk(config);
}
public void go2mainactivity() {
//延迟1秒转跳
observable.timer(1, timeunit.seconds)
.observeon(androidschedulers.mainthread())
.subscribe(along -> {
startactivity(new intent(this, mainactivity.class));
finish();
});
}
private void startactivity(map parammap, context context, class<?> clazz) {
intent intent = new intent(context, clazz);
intent.addflags(intent.flag_activity_new_task | intent.flag_activity_clear_top);
if (parammap != null) {
iterator iter = parammap.entryset().iterator();
while (iter.hasnext()) {
map.entry entry = (map.entry) iter.next();
string key = (string) entry.getkey();
string val = (string) entry.getvalue();
intent.putextra(key, val);
}
}
context.startactivity(intent);
}
}
布局：
<?xml version="1.0" encoding="utf-8"?>
<relativelayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingbottom="@dimen/activity_vertical_margin"
android:paddingleft="@dimen/activity_horizontal_margin"
android:paddingright="@dimen/activity_horizontal_margin"
android:paddingtop="@dimen/activity_vertical_margin"
tools:context="com.wingsofts.magicwindowdemo.splashactivity"
>
<textview
android:textsize="30sp"
android:text="我是引导页！！"
android:layout_centerinparent="true"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
/>
</relativelayout>
代码上面的我都有注释，在这里需要注意的是，传递参数的话一定要配置好，否则会出现错误。
