一. 概述
Android系统将进程做得很友好的封装,对于上层app开发者来说进程几乎是透明的. 了解Android的朋友,一定知道Android四大组件,但对于进程可能会相对较陌生. 一个进程里面可以跑多个app(通过share uid的方式), 一个app也可以跑在多个进程里(通过配置Android:process属性).
再进一步进程是如何创建的, 可能很多人不知道fork的存在. 在我的文章理解Android进程创建流程?集中一点详细介绍了Process.start的过程是如何一步步创建进程.本文则是从另个角度来全局性讲解Android进程启动全过程所涉及的根脉, 先来看看AMS.startProcessLocked方法.
二. 四大组件与进程
2.1 startProcessLocked
在ActivityManagerService.java关于启动进程有4个同名不同参数的重载方法, 为了便于说明,以下4个方法依次记为1(a),1(b),?2(a),?2(b)?:
//方法 1(a)
final ProcessRecord startProcessLocked(
String processName, ApplicationInfo info, boolean knownToBeDead,
int intentFlags, String hostingType, ComponentName hostingName,
boolean allowWhileBooting, boolean isolated, boolean keepIfLarge)
//方法 1(b)
final ProcessRecord startProcessLocked(
String processName, ApplicationInfo info, boolean knownToBeDead,
int intentFlags, String hostingType, ComponentName hostingName,
boolean allowWhileBooting, boolean isolated, int isolatedUid,
boolean keepIfLarge, String abiOverride, String entryPoint,
String[] entryPointArgs, Runnable crashHandler)
//方法 2(a)
private final void startProcessLocked(
ProcessRecord app, String hostingType, String hostingNameStr)
//方法 2(b)
private final void startProcessLocked(
ProcessRecord app, String hostingType, String hostingNameStr,
String abiOverride, String entryPoint, String[] entryPointArgs)
1(a) ==> 1(b):?方法1(a)将isolatedUid=0,其他参数赋值为null,再调用给1(b)
final ProcessRecord startProcessLocked(String processName,
ApplicationInfo info, boolean knownToBeDead, int intentFlags,
String hostingType, ComponentName hostingName, boolean allowWhileBooting,
boolean isolated, boolean keepIfLarge) {
return startProcessLocked(processName, info, knownToBeDead, intentFlags, hostingType,
hostingName, allowWhileBooting, isolated, 0 /* isolatedUid */, keepIfLarge,
null /* ABI override */, null /* entryPoint */, null /* entryPointArgs */,
null /* crashHandler */);
}
2(a) ==> 2(b):?方法2(a)将其他3个参数abiOverride,entryPoint, entryPointArgs赋值为null,再调用给2(b)
private final void startProcessLocked(ProcessRecord app,
String hostingType, String hostingNameStr) {
startProcessLocked(app, hostingType, hostingNameStr, null /* abiOverride */,
null /* entryPoint */, null /* entryPointArgs */);
}
小结:
- 1(a),1(b)的第一个参数为String类型的进程名processName,
- 2(a), 2(b)的第一个参数为ProcessRecord类型进程记录信息ProcessRecord;
- 1系列的方法最终调用到2系列的方法;
2.2 四大组件与进程
Activity, Service, ContentProvider, BroadcastReceiver这四大组件,在启动的过程,当其所承载的进程不存在时需要先创建进程. 这个创建进程的过程是调用前面讲到的startProcessLocked方法1(a) . 调用流程: 1(a) => 1(b) ==> 2(b). 下面再简单说说这4大组件与进程创建是在何时需要创建的.
2.2.1 Activity
启动Activity过程: 调用startActivity,该方法经过层层调用,最终会调用ActivityStackSupervisor.java中的startSpecificActivityLocked,当activity所属进程还没启动的情况下,则需要创建相应的进程.
[-> ActivityStackSupervisor.java]
void startSpecificActivityLocked(...) {
ProcessRecord app = mService.getProcessRecordLocked(r.processName,
r.info.applicationInfo.uid, true);
if (app != null && app.thread != null) {
... //进程已创建的case
return
}
mService.startProcessLocked(r.processName, r.info.applicationInfo, true, 0,
"activity", r.intent.getComponent(), false, false, true);
}
2.2.2 Service
启动服务过程: 调用startService,该方法经过层层调用,最终会调用ActiveServices.java中的bringUpServiceLocked,当Service进程没有启动的情况(app==null), 则需要创建相应的进程. 更多关于Service, 见startService流程分析
[-> ActiveServices.java]
private final String bringUpServiceLocked(...){
...
ProcessRecord app = mAm.getProcessRecordLocked(procName, r.appInfo.uid, false);
if (app == null) {
if ((app=mAm.startProcessLocked(procName, r.appInfo, true, intentFlags,
"service", r.name, false, isolated, false)) == null) {
...
}
}
...
}
2.2.3 ContentProvider
ContentProvider处理过程: 调用ContentResolver.query该方法经过层层调用, 最终会调用到AMS.java中的getContentProviderImpl,当ContentProvider所对应进程不存在,则需要创建新进程. 更多关于ContentProvider,见理解ContentProvider原理(一)
[-> AMS.java]
private final ContentProviderHolder getContentProviderImpl(...) {
...
ProcessRecord proc = getProcessRecordLocked(cpi.processName, cpr.appInfo.uid, false);
if (proc != null && proc.thread != null) {
... //进程已创建的case
} else {
proc = startProcessLocked(cpi.processName,
cpr.appInfo, false, 0, "content provider",
new ComponentName(cpi.applicationInfo.packageName,cpi.name),
false, false, false);
}
...
}
2.2.4 Broadcast
广播处理过程: 调用sendBroadcast,该方法经过层层调用, 最终会调用到BroadcastQueue.java中的processNextBroadcast,当BroadcastReceiver所对应的进程尚未启动，则创建相应进程. 更多关于broadcast, 见Android Broadcast广播机制分析.
[-> BroadcastQueue.java]
final void processNextBroadcast(boolean fromMsg) {
...
ProcessRecord app = mService.getProcessRecordLocked(targetProcess,
info.activityInfo.applicationInfo.uid, false);
if (app != null && app.thread != null) {
... //进程已创建的case
return
}
if ((r.curApp=mService.startProcessLocked(targetProcess,
info.activityInfo.applicationInfo, true,
r.intent.getFlags() | Intent.FLAG_FROM_BACKGROUND,
"broadcast", r.curComponent,
(r.intent.getFlags()&Intent.FLAG_RECEIVER_BOOT_UPGRADE) != 0, false, false))
== null) {
...
}
...
}
2.3 小节
Activity, Service, ContentProvider, BroadcastReceiver这四大组件在启动时,当所承载的进程不存在时,都需要创建. 进程的创建过程交由系统进程system_server来完成的.
简称:
- ATP: ApplicationThreadProxy
- AT: ApplicationThread (继承于ApplicationThreadNative)
- AMP: ActivityManagerProxy
- AMS: ActivityManagerService (继承于ActivityManagerNative)

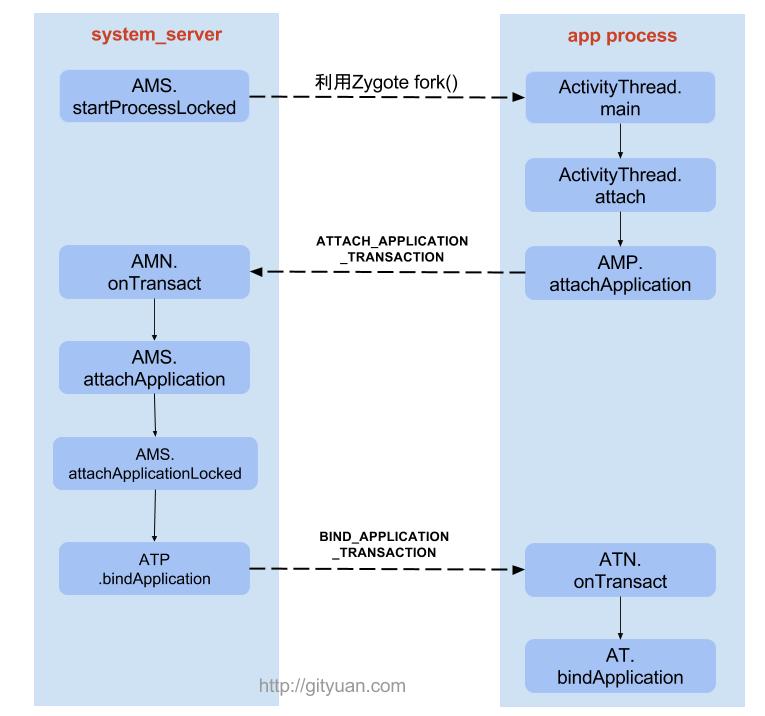

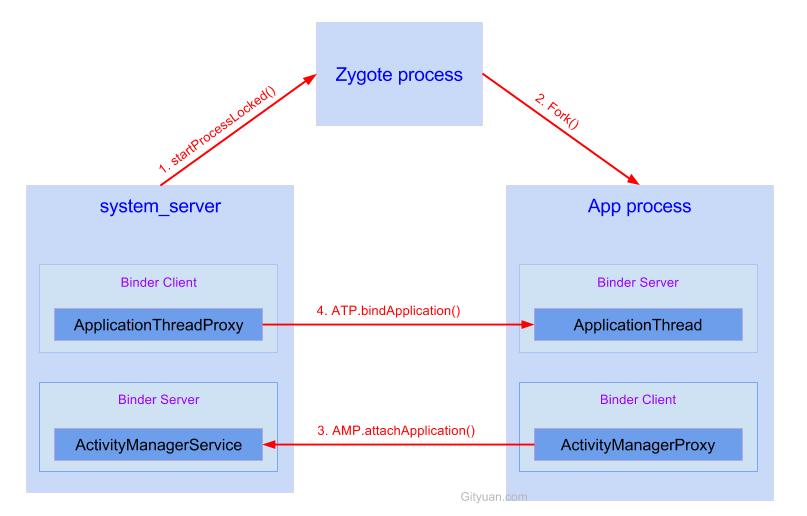

图解:
- system_server进程中调用
startProcessLocked方法,该方法最终通过socket方式,将需要创建新进程的消息告知Zygote进程,并阻塞等待Socket返回新创建进程的pid; - Zygote进程接收到system_server发送过来的消息, 则通过fork的方法，将zygote自身进程复制生成新的进程，并将ActivityThread相关的资源加载到新进程app process,这个进程可能是用于承载activity等组件;
- 创建完新进程后fork返回两次, 在新进程app process向servicemanager查询system_server进程中binder服务端AMS,获取相对应的Client端,也就是AMP. 有了这一对binder c/s对, 那么app process便可以通过binder向跨进程system_server发送请求,即attachApplication()
- system_server进程接收到相应binder操作后,经过多次调用,利用ATP向app process发送binder请求, 即bindApplication.
system_server拥有ATP/AMS, 每一个新创建的进程都会有一个相应的AT/AMS,从而可以跨进程 进行相互通信. 这便是进程创建过程的完整生态链.
四大组件的进程创建时机:
| 组件 | 创建方法 |
|---|---|
| Activity | ASS.startSpecificActivityLocked() |
| Service | ActiveServices.bringUpServiceLocked() |
| ContentProvider | AMS.getContentProviderImpl() |
| Broadcast | BroadcastQueue.processNextBroadcast() |
三. 进程启动全过程
前面刚已介绍四大组件的创建进程的过程是调用1(a)?startProcessLocked方法,该方法会再调用1(b)方法. 接下来从该方法开始往下讲述.
3.1 AMS.startProcessLocked
final ProcessRecord startProcessLocked(String processName, ApplicationInfo info,
boolean knownToBeDead, int intentFlags, String hostingType, ComponentName hostingName,
boolean allowWhileBooting, boolean isolated, int isolatedUid, boolean keepIfLarge,
String abiOverride, String entryPoint, String[] entryPointArgs, Runnable crashHandler) {
long startTime = SystemClock.elapsedRealtime();
ProcessRecord app;
if (!isolated) {
//根据进程名和uid检查相应的ProcessRecord
app = getProcessRecordLocked(processName, info.uid, keepIfLarge);
if ((intentFlags & Intent.FLAG_FROM_BACKGROUND) != 0) {
//如果当前处于后台进程，检查当前进程是否处于bad进程列表
if (mBadProcesses.get(info.processName, info.uid) != null) {
return null;
}
} else {
//当用户明确地启动进程，则清空crash次数，以保证其不处于bad进程直到下次再弹出crash对话框。
mProcessCrashTimes.remove(info.processName, info.uid);
if (mBadProcesses.get(info.processName, info.uid) != null) {
mBadProcesses.remove(info.processName, info.uid);
if (app != null) {
app.bad = false;
}
}
}
} else {
//对于孤立进程，无法再利用已存在的进程
app = null;
}
//当存在ProcessRecord,且已分配pid(正在启动或者已经启动),
// 且caller并不认为该进程已死亡或者没有thread对象attached到该进程.则不应该清理该进程
if (app != null && app.pid > 0) {
if (!knownToBeDead || app.thread == null) {
//如果这是进程中新package，则添加到列表
app.addPackage(info.packageName, info.versionCode, mProcessStats);
return app;
}
//当ProcessRecord已经被attached到先前的一个进程，则杀死并清理该进程
killProcessGroup(app.info.uid, app.pid);
handleAppDiedLocked(app, true, true);
}
String hostingNameStr = hostingName != null? hostingName.flattenToShortString() : null;
if (app == null) {
// 创建新的Process Record对象
app = newProcessRecordLocked(info, processName, isolated, isolatedUid);
if (app == null) {
return null;
}
app.crashHandler = crashHandler;
} else {
//如果这是进程中新package，则添加到列表
app.addPackage(info.packageName, info.versionCode, mProcessStats);
}
//当系统未准备完毕，则将当前进程加入到mProcessesOnHold
if (!mProcessesReady && !isAllowedWhileBooting(info) && !allowWhileBooting) {
if (!mProcessesOnHold.contains(app)) {
mProcessesOnHold.add(app);
}
return app;
}
// 启动进程【见小节3.2】
startProcessLocked(app, hostingType, hostingNameStr, abiOverride, entryPoint, entryPointArgs);
return (app.pid != 0) ? app : null;
}
主要功能:
- 对于非isolated进程,则根据进程名和uid来查询相应的ProcessRecord结构体. 如果当前进程处于后台且当前进程处于mBadProcesses列表,则直接返回;否则清空crash次数，以保证其不处于bad进程直到下次再弹出crash对话框。
- 当存在ProcessRecord,且已分配pid(正在启动或者已经启动)的情况下
- 当caller并不认为该进程已死亡或者没有thread对象attached到该进程.则不应该清理该进程,则直接返回;
- 否则杀死并清理该进程;
- 当ProcessRecord为空则新建一个,当创建失败则直接返回;
- 当系统未准备完毕，则将当前进程加入到mProcessesOnHold, 并直接返回;
- 最后启动新进程,其中参数含义:
- hostingType可取值为”activity”,”service”,”broadcast”,”content provider”;
- hostingNameStr数据类型为ComponentName,代表的是具体相对应的组件名.
另外, 进程的uid是在进程真正创建之前调用newProcessRecordLocked方法来获取的uid, 这里会考虑是否为isolated的情况.
3.2 AMS.startProcessLocked
private final void startProcessLocked(ProcessRecord app, String hostingType,
String hostingNameStr, String abiOverride, String entryPoint, String[] entryPointArgs) {
long startTime = SystemClock.elapsedRealtime();
//当app的pid大于0且不是当前进程的pid，则从mPidsSelfLocked中移除该app.pid
if (app.pid > 0 && app.pid != MY_PID) {
synchronized (mPidsSelfLocked) {
mPidsSelfLocked.remove(app.pid);
mHandler.removeMessages(PROC_START_TIMEOUT_MSG, app);
}
app.setPid(0);
}
//从mProcessesOnHold移除该app
mProcessesOnHold.remove(app);
updateCpuStats(); //更新cpu统计信息
try {
try {
if (AppGlobals.getPackageManager().isPackageFrozen(app.info.packageName)) {
//当前package已被冻结,则抛出异常
throw new RuntimeException("Package " + app.info.packageName + " is frozen!");
}
} catch (RemoteException e) {
throw e.rethrowAsRuntimeException();
}
int uid = app.uid;
int[] gids = null;
int mountExternal = Zygote.MOUNT_EXTERNAL_NONE;
if (!app.isolated) {
int[] permGids = null;
try {
//通过Package Manager获取gids
final IPackageManager pm = AppGlobals.getPackageManager();
permGids = pm.getPackageGids(app.info.packageName, app.userId);
MountServiceInternal mountServiceInternal = LocalServices.getService(
MountServiceInternal.class);
mountExternal = mountServiceInternal.getExternalStorageMountMode(uid,
app.info.packageName);
} catch (RemoteException e) {
throw e.rethrowAsRuntimeException();
}
//添加共享app和gids，用于app直接共享资源
if (ArrayUtils.isEmpty(permGids)) {
gids = new int[2];
} else {
gids = new int[permGids.length + 2];
System.arraycopy(permGids, 0, gids, 2, permGids.length);
}
gids[0] = UserHandle.getSharedAppGid(UserHandle.getAppId(uid));
gids[1] = UserHandle.getUserGid(UserHandle.getUserId(uid));
}
//根据不同参数,设置相应的debugFlags
...
app.gids = gids;
app.requiredAbi = requiredAbi;
app.instructionSet = instructionSet;
boolean isActivityProcess = (entryPoint == null);
if (entryPoint == null) entryPoint = "android.app.ActivityThread";
//请求Zygote创建新进程[见3.3]
Process.ProcessStartResult startResult = Process.start(entryPoint,
app.processName, uid, uid, gids, debugFlags, mountExternal,
app.info.targetSdkVersion, app.info.seinfo, requiredAbi, instructionSet,
app.info.dataDir, entryPointArgs);
...
if (app.persistent) {
Watchdog.getInstance().processStarted(app.processName, startResult.pid);
}
//重置ProcessRecord的成员变量
app.setPid(startResult.pid);
app.usingWrapper = startResult.usingWrapper;
app.removed = false;
app.killed = false;
app.killedByAm = false;
//将新创建的进程加入到mPidsSelfLocked
synchronized (mPidsSelfLocked) {
this.mPidsSelfLocked.put(startResult.pid, app);
if (isActivityProcess) {
Message msg = mHandler.obtainMessage(PROC_START_TIMEOUT_MSG);
msg.obj = app;
//延迟发送消息PROC_START_TIMEOUT_MSG
mHandler.sendMessageDelayed(msg, startResult.usingWrapper
? PROC_START_TIMEOUT_WITH_WRAPPER : PROC_START_TIMEOUT);
}
}
} catch (RuntimeException e) {
app.setPid(0); //进程创建失败,则重置pid
}
}
- 根据不同参数,设置相应的debugFlags,比如在AndroidManifest.xml中设置androidd:debuggable为true，代表app运行在debug模式,则增加debugger标识以及开启JNI check功能
- 调用Process.start来创建新进程;
- 重置ProcessRecord的成员变量, 一般情况下超时10s后发送PROC_START_TIMEOUT_MSG的handler消息;
关于Process.start()是通过socket通信告知Zygote创建fork子进程，创建新进程后将ActivityThread类加载到新进程，并调用ActivityThread.main()方法。详细过程见理解Android进程创建流程,接下来进入AT.main方法.
3.3 ActivityThread.main
[-> ActivityThread.java]
public static void main(String[] args) {
//性能统计默认是关闭的
SamplingProfilerIntegration.start();
//将当前进程所在userId赋值给sCurrentUser
Environment.initForCurrentUser();
EventLogger.setReporter(new EventLoggingReporter());
AndroidKeyStoreProvider.install();
//确保可信任的CA证书存放在正确的位置
final File configDir = Environment.getUserConfigDirectory(UserHandle.myUserId());
TrustedCertificateStore.setDefaultUserDirectory(configDir);
Process.setArgV0("<pre-initialized>");
//创建主线程的Looper对象, 该Looper是不运行退出
Looper.prepareMainLooper();
//创建ActivityThread对象
ActivityThread thread = new ActivityThread();
//建立Binder通道 【见流程3.4】
thread.attach(false);
if (sMainThreadHandler == null) {
sMainThreadHandler = thread.getHandler();
}
// 当设置为true时，可打开消息队列的debug log信息
if (false) {
Looper.myLooper().setMessageLogging(new LogPrinter(Log.DEBUG, "ActivityThread"));
}
Looper.loop(); //消息循环运行
throw new RuntimeException("Main thread loop unexpectedly exited");
}
- 创建主线程的Looper对象: 该Looper是不运行退出. 也就是说主线程的Looper是在进程创建完成时自动创建完成,如果子线程也需要创建handler通信过程,那么就需要手动创建Looper对象,并且每个线程只能创建一次.
- 创建ActivityThread对象
thread = new ActivityThread(): 该过程会初始化几个很重要的变量:- mAppThread = new ApplicationThread()
- mLooper = Looper.myLooper()
- mH = new H(),?
H继承于Handler;用于处理组件的生命周期.
- attach过程是当前主线程向system_server进程通信的过程, 将thread信息告知AMS.接下来还会进一步说明该过程.
- sMainThreadHandler通过getHandler(),获取的对象便是
mH,这就是主线程的handler对象.
之后主线程调用Looper.loop(),进入消息循环状态, 当没有消息时主线程进入休眠状态, 一旦有消息到来则唤醒主线程并执行相关操作.
3.4. ActivityThread.attach
[-> ActivityThread.java]
private void attach(boolean system) {
sCurrentActivityThread = this;
mSystemThread = system;
if (!system) {
//开启虚拟机的jit即时编译功能
ViewRootImpl.addFirstDrawHandler(new Runnable() {
@Override
public void run() {
ensureJitEnabled();
}
});
android.ddm.DdmHandleAppName.setAppName("<pre-initialized>", UserHandle.myUserId());
RuntimeInit.setApplicationObject(mAppThread.asBinder());
//创建ActivityManagerProxy对象
final IActivityManager mgr = ActivityManagerNative.getDefault();
try {
//调用基于IActivityManager接口的Binder通道【见流程3.5】
mgr.attachApplication(mAppThread);
} catch (RemoteException ex) {
}
//观察是否快接近heap的上限
BinderInternal.addGcWatcher(new Runnable() {
@Override public void run() {
if (!mSomeActivitiesChanged) {
return;
}
Runtime runtime = Runtime.getRuntime();
long dalvikMax = runtime.maxMemory();
long dalvikUsed = runtime.totalMemory() - runtime.freeMemory();
if (dalvikUsed > ((3*dalvikMax)/4)) {
mSomeActivitiesChanged = false;
try {
//当已用内存超过最大内存的3/4,则请求释放内存空间
mgr.releaseSomeActivities(mAppThread);
} catch (RemoteException e) {
}
}
}
});
} else {
...
}
//添加dropbox日志到libcore
DropBox.setReporter(new DropBoxReporter());
//添加Config回调接口
ViewRootImpl.addConfigCallback(new ComponentCallbacks2() {
@Override
public void onConfigurationChanged(Configuration newConfig) {
synchronized (mResourcesManager) {
if (mResourcesManager.applyConfigurationToResourcesLocked(newConfig, null)) {
if (mPendingConfiguration == null ||
mPendingConfiguration.isOtherSeqNewer(newConfig)) {
mPendingConfiguration = newConfig;
sendMessage(H.CONFIGURATION_CHANGED, newConfig);
}
}
}
}
@Override
public void onLowMemory() {
}
@Override
public void onTrimMemory(int level) {
}
});
}
对于非系统attach的处理流程:
- 创建线程来开启虚拟机的jit即时编译;
- 通过binder, 调用到AMS.attachApplication, 其参数mAppThread的数据类型为
ApplicationThread - 观察是否快接近heap的上限,当已用内存超过最大内存的3/4,则请求释放内存空间
- 添加dropbox日志到libcore
- 添加Config回调接口
3.5 AMP.attachApplication
[-> ActivityManagerProxy.java]
public void attachApplication(IApplicationThread app) throws RemoteException
{
Parcel data = Parcel.obtain();
Parcel reply = Parcel.obtain();
data.writeInterfaceToken(IActivityManager.descriptor);
data.writeStrongBinder(app.asBinder());
mRemote.transact(ATTACH_APPLICATION_TRANSACTION, data, reply, 0); //【见流程3.6】
reply.readException();
data.recycle();
reply.recycle();
}
此处 descriptor = “android.app.IActivityManager”
3.6 AMN.onTransact
[-> ActivityManagerNative.java]
public boolean onTransact(int code, Parcel data, Parcel reply, int flags)
throws RemoteException {
switch (code) {
...
case ATTACH_APPLICATION_TRANSACTION: {
data.enforceInterface(IActivityManager.descriptor);
//获取ApplicationThread的binder代理类 ApplicationThreadProxy
IApplicationThread app = ApplicationThreadNative.asInterface(
data.readStrongBinder());
if (app != null) {
attachApplication(app); //此处是ActivityManagerService类中的方法 【见流程3.7】
}
reply.writeNoException();
return true;
}
}
}
3.7 AMS.attachApplication
[-> ActivityManagerService.java]
public final void attachApplication(IApplicationThread thread) {
synchronized (this) {
int callingPid = Binder.getCallingPid();
final long origId = Binder.clearCallingIdentity();
attachApplicationLocked(thread, callingPid); // 【见流程3.8】
Binder.restoreCallingIdentity(origId);
}
}
此处的thread便是ApplicationThreadProxy对象,用于跟前面通过Process.start()所创建的进程中ApplicationThread对象进行通信.
3.8 AMS.attachApplicationLocked
[-> ActivityManagerService.java]
private final boolean attachApplicationLocked(IApplicationThread thread,
int pid) {
ProcessRecord app;
if (pid != MY_PID && pid >= 0) {
synchronized (mPidsSelfLocked) {
app = mPidsSelfLocked.get(pid); // 根据pid获取ProcessRecord
}
} else {
app = null;
}
if (app == null) {
if (pid > 0 && pid != MY_PID) {
//ProcessRecord为空，则杀掉该进程
Process.killProcessQuiet(pid);
} else {
//退出新建进程的Looper
thread.scheduleExit();
}
return false;
}
//还刚进入attach过程,此时thread应该为null,若不为null则表示该app附到上一个进程，则立刻清空
if (app.thread != null) {
handleAppDiedLocked(app, true, true);
}
final String processName = app.processName;
try {
//绑定死亡通知
AppDeathRecipient adr = new AppDeathRecipient(app, pid, thread);
thread.asBinder().linkToDeath(adr, 0);
app.deathRecipient = adr;
} catch (RemoteException e) {
app.resetPackageList(mProcessStats);
startProcessLocked(app, "link fail", processName); //重新启动进程
return false;
}
//重置进程信息
app.makeActive(thread, mProcessStats); //执行完该语句,则app.thread便不再为空
app.curAdj = app.setAdj = -100;
app.curSchedGroup = app.setSchedGroup = Process.THREAD_GROUP_DEFAULT;
app.forcingToForeground = null;
updateProcessForegroundLocked(app, false, false);
app.hasShownUi = false;
app.debugging = false;
app.cached = false;
app.killedByAm = false;
mHandler.removeMessages(PROC_START_TIMEOUT_MSG, app); //移除进程启动超时的消息
//系统处于ready状态或者该app为FLAG_PERSISTENT进程,则为true
boolean normalMode = mProcessesReady || isAllowedWhileBooting(app.info);
List<ProviderInfo> providers = normalMode ? generateApplicationProvidersLocked(app) : null;
//app进程存在正在启动中的provider,则超时10s后发送CONTENT_PROVIDER_PUBLISH_TIMEOUT_MSG消息
if (providers != null && checkAppInLaunchingProvidersLocked(app)) {
Message msg = mHandler.obtainMessage(CONTENT_PROVIDER_PUBLISH_TIMEOUT_MSG);
msg.obj = app;
mHandler.sendMessageDelayed(msg, CONTENT_PROVIDER_PUBLISH_TIMEOUT);
}
try {
...
ensurePackageDexOpt(app.instrumentationInfo != null
? app.instrumentationInfo.packageName
: app.info.packageName);
ApplicationInfo appInfo = app.instrumentationInfo != null
? app.instrumentationInfo : app.info;
...
// 绑定应用 [见流程3.9]
thread.bindApplication(processName, appInfo, providers, app.instrumentationClass,
profilerInfo, app.instrumentationArguments, app.instrumentationWatcher,
app.instrumentationUiAutomationConnection, testMode, enableOpenGlTrace,
isRestrictedBackupMode || !normalMode, app.persistent,
new Configuration(mConfiguration), app.compat,
getCommonServicesLocked(app.isolated),
mCoreSettingsObserver.getCoreSettingsLocked());
//更新进程LRU队列
updateLruProcessLocked(app, false, null);
app.lastRequestedGc = app.lastLowMemory = SystemClock.uptimeMillis();
} catch (Exception e) {
app.resetPackageList(mProcessStats);
app.unlinkDeathRecipient();
//每当bind操作失败,则重启启动进程, 此处有可能会导致进程无限重启
startProcessLocked(app, "bind fail", processName);
return false;
}
mPersistentStartingProcesses.remove(app);
mProcessesOnHold.remove(app);
boolean badApp = false;
boolean didSomething = false;
//Activity: 检查最顶层可见的Activity是否等待在该进程中运行
if (normalMode) {
try {
if (mStackSupervisor.attachApplicationLocked(app)) {
didSomething = true;
}
} catch (Exception e) {
badApp = true;
}
}
//Service: 寻找所有需要在该进程中运行的服务
if (!badApp) {
try {
didSomething |= mServices.attachApplicationLocked(app, processName);
} catch (Exception e) {
badApp = true;
}
}
//Broadcast: 检查是否在这个进程中有下一个广播接收者
if (!badApp && isPendingBroadcastProcessLocked(pid)) {
try {
didSomething |= sendPendingBroadcastsLocked(app);
} catch (Exception e) {
badApp = true;
}
}
//检查是否在这个进程中有下一个backup代理
if (!badApp && mBackupTarget != null && mBackupTarget.appInfo.uid == app.uid) {
ensurePackageDexOpt(mBackupTarget.appInfo.packageName);
try {
thread.scheduleCreateBackupAgent(mBackupTarget.appInfo,
compatibilityInfoForPackageLocked(mBackupTarget.appInfo),
mBackupTarget.backupMode);
} catch (Exception e) {
badApp = true;
}
}
if (badApp) { //杀掉bad应用
app.kill("error during init", true);
handleAppDiedLocked(app, false, true);
return false;
}
if (!didSomething) {
updateOomAdjLocked(); //更新adj的值
}
return true;
}
- 根据pid从mPidsSelfLocked中查询到相应的ProcessRecord对象app;
- 当app==null,意味着本次创建的进程不存在, 则直接返回.
- 还刚进入attach过程,此时thread应该为null,若不为null则表示该app附到上一个进程，则调用handleAppDiedLocked清理.
- 绑定死亡通知,当进程pid死亡时会通过binder死亡回调,来通知system_server进程死亡的消息;
- 重置ProcessRecord进程信息, 此时app.thread也赋予了新值,便不再为空.
- app进程存在正在启动中的provider,则超时10s后发送CONTENT_PROVIDER_PUBLISH_TIMEOUT_MSG消息
- 调用thread.bindApplication绑定应用进程, 后面再进一步说明
- 处理Provider, Activity, Service, Broadcast相应流程
下面,再来说说thread.bindApplication的过程.
3.9 ATP.bindApplication
[-> ApplicationThreadNative.java ::ApplicationThreadProxy]
class ApplicationThreadProxy implements IApplicationThread {
...
public final void bindApplication(String packageName, ApplicationInfo info,
List<ProviderInfo> providers, ComponentName testName, ProfilerInfo profilerInfo,
Bundle testArgs, IInstrumentationWatcher testWatcher,
IUiAutomationConnection uiAutomationConnection, int debugMode,
boolean openGlTrace, boolean restrictedBackupMode, boolean persistent,
Configuration config, CompatibilityInfo compatInfo, Map<String, IBinder> services,
Bundle coreSettings) throws RemoteException {
Parcel data = Parcel.obtain();
data.writeInterfaceToken(IApplicationThread.descriptor);
data.writeString(packageName);
info.writeToParcel(data, 0);
data.writeTypedList(providers);
if (testName == null) {
data.writeInt(0);
} else {
data.writeInt(1);
testName.writeToParcel(data, 0);
}
if (profilerInfo != null) {
data.writeInt(1);
profilerInfo.writeToParcel(data, Parcelable.PARCELABLE_WRITE_RETURN_VALUE);
} else {
data.writeInt(0);
}
data.writeBundle(testArgs);
data.writeStrongInterface(testWatcher);
data.writeStrongInterface(uiAutomationConnection);
data.writeInt(debugMode);
data.writeInt(openGlTrace ? 1 : 0);
data.writeInt(restrictedBackupMode ? 1 : 0);
data.writeInt(persistent ? 1 : 0);
config.writeToParcel(data, 0);
compatInfo.writeToParcel(data, 0);
data.writeMap(services);
data.writeBundle(coreSettings);
mRemote.transact(BIND_APPLICATION_TRANSACTION, data, null,
IBinder.FLAG_ONEWAY);
data.recycle();
}
...
}
ATP经过binder ipc传递到ATN的onTransact过程.
3.10 ATN.onTransact
[-> ApplicationThreadNative.java]
public boolean onTransact(int code, Parcel data, Parcel reply, int flags)
throws RemoteException {
switch (code) {
...
case BIND_APPLICATION_TRANSACTION:
{
data.enforceInterface(IApplicationThread.descriptor);
String packageName = data.readString();
ApplicationInfo info =
ApplicationInfo.CREATOR.createFromParcel(data);
List<ProviderInfo> providers =
data.createTypedArrayList(ProviderInfo.CREATOR);
ComponentName testName = (data.readInt() != 0)
? new ComponentName(data) : null;
ProfilerInfo profilerInfo = data.readInt() != 0
? ProfilerInfo.CREATOR.createFromParcel(data) : null;
Bundle testArgs = data.readBundle();
IBinder binder = data.readStrongBinder();
IInstrumentationWatcher testWatcher = IInstrumentationWatcher.Stub.asInterface(binder);
binder = data.readStrongBinder();
IUiAutomationConnection uiAutomationConnection =
IUiAutomationConnection.Stub.asInterface(binder);
int testMode = data.readInt();
boolean openGlTrace = data.readInt() != 0;
boolean restrictedBackupMode = (data.readInt() != 0);
boolean persistent = (data.readInt() != 0);
Configuration config = Configuration.CREATOR.createFromParcel(data);
CompatibilityInfo compatInfo = CompatibilityInfo.CREATOR.createFromParcel(data);
HashMap<String, IBinder> services = data.readHashMap(null);
Bundle coreSettings = data.readBundle();
//[见流程3.11]
bindApplication(packageName, info, providers, testName, profilerInfo, testArgs,
testWatcher, uiAutomationConnection, testMode, openGlTrace,
restrictedBackupMode, persistent, config, compatInfo, services, coreSettings);
return true;
}
...
}
3.11 AT.bindApplication
[-> ActivityThread.java ::ApplicationThread]
public final void bindApplication(String processName, ApplicationInfo appInfo,
List<ProviderInfo> providers, ComponentName instrumentationName,
ProfilerInfo profilerInfo, Bundle instrumentationArgs,
IInstrumentationWatcher instrumentationWatcher,
IUiAutomationConnection instrumentationUiConnection, int debugMode,
boolean enableOpenGlTrace, boolean isRestrictedBackupMode, boolean persistent,
Configuration config, CompatibilityInfo compatInfo, Map<String, IBinder> services,
Bundle coreSettings) {
if (services != null) {
//将services缓存起来, 减少binder检索服务的次数
ServiceManager.initServiceCache(services);
}
//发送消息H.SET_CORE_SETTINGS
setCoreSettings(coreSettings);
IPackageManager pm = getPackageManager();
android.content.pm.PackageInfo pi = null;
try {
pi = pm.getPackageInfo(appInfo.packageName, 0, UserHandle.myUserId());
} catch (RemoteException e) {
}
if (pi != null) {
boolean sharedUserIdSet = (pi.sharedUserId != null);
boolean processNameNotDefault = (pi.applicationInfo != null &&
!appInfo.packageName.equals(pi.applicationInfo.processName));
boolean sharable = (sharedUserIdSet || processNameNotDefault);
if (!sharable) {
VMRuntime.registerAppInfo(appInfo.packageName, appInfo.dataDir,
appInfo.processName);
}
}
//初始化AppBindData, 再发送消息H.BIND_APPLICATION
AppBindData data = new AppBindData();
data.processName = processName;
data.appInfo = appInfo;
data.providers = providers;
data.instrumentationName = instrumentationName;
data.instrumentationArgs = instrumentationArgs;
data.instrumentationWatcher = instrumentationWatcher;
data.instrumentationUiAutomationConnection = instrumentationUiConnection;
data.debugMode = debugMode;
data.enableOpenGlTrace = enableOpenGlTrace;
data.restrictedBackupMode = isRestrictedBackupMode;
data.persistent = persistent;
data.config = config;
data.compatInfo = compatInfo;
data.initProfilerInfo = profilerInfo;
sendMessage(H.BIND_APPLICATION, data);
}
其中setCoreSettings()过程就是调用sendMessage(H.SET_CORE_SETTINGS, coreSettings) 来向主线程发送SET_CORE_SETTINGS消息.bindApplication方法的主要功能是依次向主线程发送消息H.SET_CORE_SETTINGS和H.BIND_APPLICATION. 接下来再来说说这两个消息的处理过程
3.12 H.SET_CORE_SETTINGS
[-> ActivityThread.java ::H]
当主线程收到H.SET_CORE_SETTINGS,则调用handleSetCoreSettings
private void handleSetCoreSettings(Bundle coreSettings) {
synchronized (mResourcesManager) {
mCoreSettings = coreSettings;
}
onCoreSettingsChange();
}
private void onCoreSettingsChange() {
boolean debugViewAttributes = mCoreSettings.getInt(Settings.Global.DEBUG_VIEW_ATTRIBUTES, 0) != 0;
if (debugViewAttributes != View.mDebugViewAttributes) {
View.mDebugViewAttributes = debugViewAttributes;
// 由于发生改变, 请求所有的activities重启启动
for (Map.Entry<IBinder, ActivityClientRecord> entry : mActivities.entrySet()) {
requestRelaunchActivity(entry.getKey(), null, null, 0, false, null, null, false);
}
}
}
3.13 H.BIND_APPLICATION
[-> ActivityThread.java ::H]
当主线程收到H.BIND_APPLICATION,则调用handleBindApplication
private void handleBindApplication(AppBindData data) {
mBoundApplication = data;
mConfiguration = new Configuration(data.config);
mCompatConfiguration = new Configuration(data.config);
...
//设置进程名, 也就是说进程名是在进程真正创建以后的BIND_APPLICATION过程中才取名
Process.setArgV0(data.processName);
android.ddm.DdmHandleAppName.setAppName(data.processName, UserHandle.myUserId());
if (data.persistent) {
//低内存设备, persistent进程不采用硬件加速绘制,以节省内存使用量
if (!ActivityManager.isHighEndGfx()) {
HardwareRenderer.disable(false);
}
}
//重置时区
TimeZone.setDefault(null);
Locale.setDefault(data.config.locale);
//更新系统配置
mResourcesManager.applyConfigurationToResourcesLocked(data.config, data.compatInfo);
mCurDefaultDisplayDpi = data.config.densityDpi;
applyCompatConfiguration(mCurDefaultDisplayDpi);
data.info = getPackageInfoNoCheck(data.appInfo, data.compatInfo);
...
// 创建ContextImpl上下文
final ContextImpl appContext = ContextImpl.createAppContext(this, data.info);
if (!Process.isIsolated()) {
final File cacheDir = appContext.getCacheDir();
if (cacheDir != null) {
System.setProperty("java.io.tmpdir", cacheDir.getAbsolutePath());
}
//用于存储产生/编译的图形代码
final File codeCacheDir = appContext.getCodeCacheDir();
if (codeCacheDir != null) {
setupGraphicsSupport(data.info, codeCacheDir);
}
}
final boolean is24Hr = "24".equals(mCoreSettings.getString(Settings.System.TIME_12_24));
DateFormat.set24HourTimePref(is24Hr);
View.mDebugViewAttributes = mCoreSettings.getInt(Settings.Global.DEBUG_VIEW_ATTRIBUTES, 0) != 0;
...
//当处于调试模式,则运行应用生成systrace信息
boolean appTracingAllowed = (data.appInfo.flags&ApplicationInfo.FLAG_DEBUGGABLE) != 0;
Trace.setAppTracingAllowed(appTracingAllowed);
//初始化 默认的http代理
IBinder b = ServiceManager.getService(Context.CONNECTIVITY_SERVICE);
if (b != null) {
IConnectivityManager service = IConnectivityManager.Stub.asInterface(b);
final ProxyInfo proxyInfo = service.getProxyForNetwork(null);
Proxy.setHttpProxySystemProperty(proxyInfo);
}
if (data.instrumentationName != null) {
InstrumentationInfo ii = null;
ii = appContext.getPackageManager().getInstrumentationInfo(data.instrumentationName, 0);
mInstrumentationPackageName = ii.packageName;
mInstrumentationAppDir = ii.sourceDir;
mInstrumentationSplitAppDirs = ii.splitSourceDirs;
mInstrumentationLibDir = ii.nativeLibraryDir;
mInstrumentedAppDir = data.info.getAppDir();
mInstrumentedSplitAppDirs = data.info.getSplitAppDirs();
mInstrumentedLibDir = data.info.getLibDir();
ApplicationInfo instrApp = new ApplicationInfo();
instrApp.packageName = ii.packageName;
instrApp.sourceDir = ii.sourceDir;
instrApp.publicSourceDir = ii.publicSourceDir;
instrApp.splitSourceDirs = ii.splitSourceDirs;
instrApp.splitPublicSourceDirs = ii.splitPublicSourceDirs;
instrApp.dataDir = ii.dataDir;
instrApp.nativeLibraryDir = ii.nativeLibraryDir;
LoadedApk pi = getPackageInfo(instrApp, data.compatInfo,
appContext.getClassLoader(), false, true, false);
ContextImpl instrContext = ContextImpl.createAppContext(this, pi);
java.lang.ClassLoader cl = instrContext.getClassLoader();
mInstrumentation = (Instrumentation)cl.loadClass(data.instrumentationName.getClassName()).newInstance();
mInstrumentation.init(this, instrContext, appContext,
new ComponentName(ii.packageName, ii.name), data.instrumentationWatcher,
data.instrumentationUiAutomationConnection);
...
} else {
mInstrumentation = new Instrumentation();
}
//FLAG_LARGE_HEAP则清除内存增长上限
if ((data.appInfo.flags&ApplicationInfo.FLAG_LARGE_HEAP) != 0) {
dalvik.system.VMRuntime.getRuntime().clearGrowthLimit();
} else {
dalvik.system.VMRuntime.getRuntime().clampGrowthLimit();
}
try {
// 通过反射,创建目标应用Application对象,即在AndroidManifest.xml文件定义的应用名
Application app = data.info.makeApplication(data.restrictedBackupMode, null);
mInitialApplication = app;
if (!data.restrictedBackupMode) {
List<ProviderInfo> providers = data.providers;
if (providers != null) {
installContentProviders(app, providers);
mH.sendEmptyMessageDelayed(H.ENABLE_JIT, 10*1000);
}
}
mInstrumentation.onCreate(data.instrumentationArgs);
//调用Application.onCreate()回调方法.
mInstrumentation.callApplicationOnCreate(app);
} finally {
StrictMode.setThreadPolicy(savedPolicy);
}
}
小节:?到此进程启动的全过程基本介绍完, 那接下来程序该往哪执行呢, 那就是要继续看[见流程3.8] AMS.attachApplicationLocked.从[3.9 ~ 3.13] 只是介绍了bindApplication过程, 该方法之后便是组件启动相关的内容,本文主要将进程相关内容, 组件的内容后续还会再进一步介绍.
四. 总结
本文首先介绍AMS的4个同名不同参数的方法startProcessLocked; 紧接着讲述了四大组件与进程的关系, Activity, Service, ContentProvider, BroadcastReceiver这四大组件,在启动的过程,当其所承载的进程不存在时需要先创建进程. 再然后进入重点以startProcessLocked以引线一路讲解整个过程所遇到的核心方法. 在整个过程中有新创建的进程与system_server进程之间的交互过程 是通过binder进行通信的, 这里有两条binder通道分别为AMP/AMN 和 ATP/ATN.
上图便是一次完整的进程创建过程,app的任何组件需要有一个承载其运行的容器,那就是进程, 那么进程的创建过程都是由系统进程system_server通过socket向zygote进程来请求fork()新进程, 当创建出来的app process与system_server进程之间的通信便是通过binder IPC机制.
